Compact & Efficient Autoclave for Podiatry
*Price includes VAT and delivery.
Description

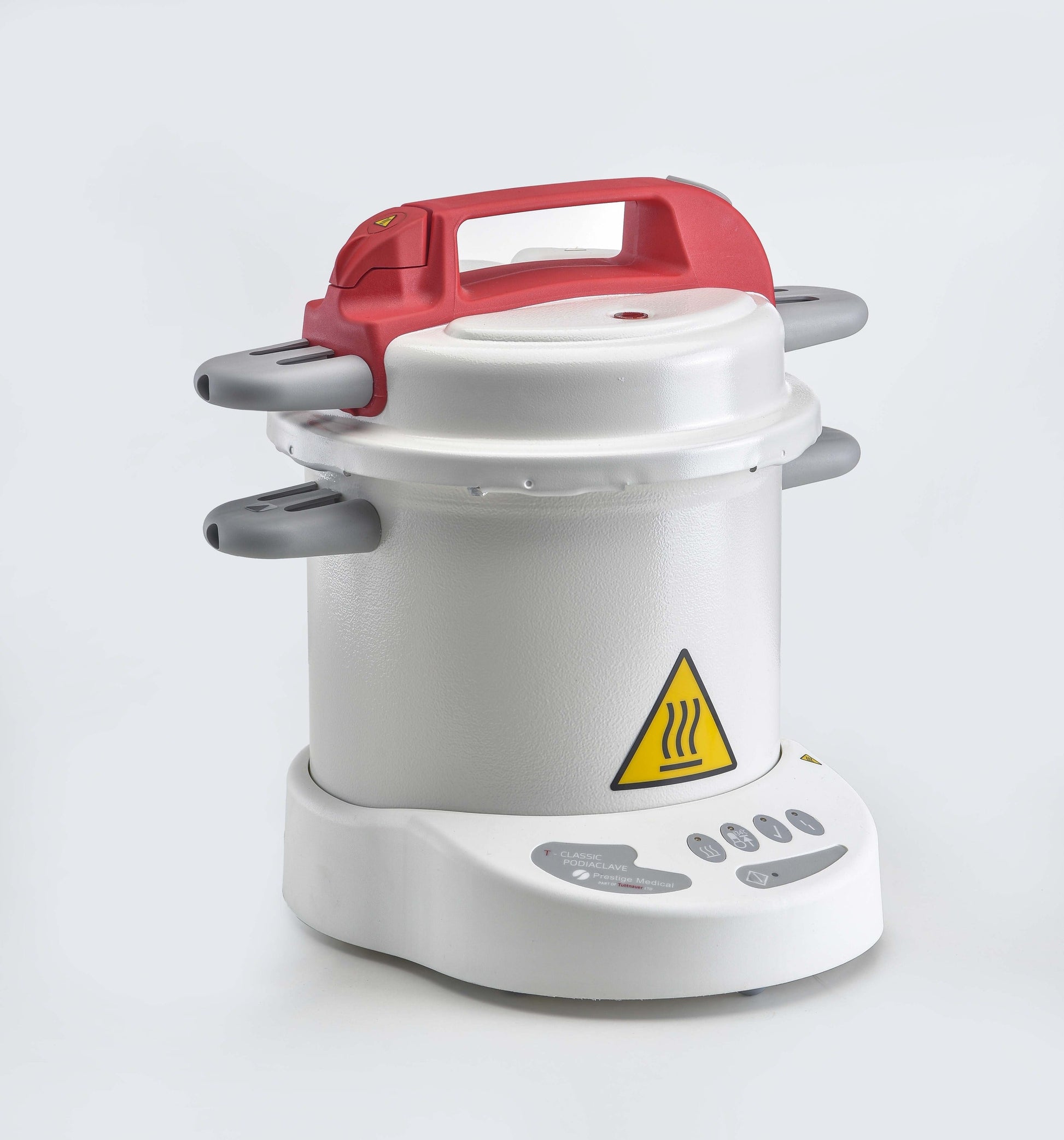

The Classic Podiaclave is a compact autoclave designed specifically for podiatry practices. With advanced sterilization cycles, user-friendly controls, and a small footprint, it delivers reliable and rapid sterilization.
Fully automatic with a simple, one touch operation and comes with an integral printer.
Indication
Ideal for sterilizing podiatric instruments such as handpieces, burs, and accessories – both wrapped and unwrapped.
Features and Benefits
- Compact Design: Optimized for practices with limited space.
- Fast Cycle Times: Rapid sterilization for improved workflow.
- User-Friendly Controls: Intuitive operation for ease of use.
- Versatile Loading: Supports both wrapped and unwrapped instruments.
- Reliable Performance: Sterilization at 134°C.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | T-Classic Podiaclave |
| Maximum Width Overall | 340 mm |
| Maximum Height Overall | 335 mm |
| Maximum Net Weight | 6.40 kg |
| Chamber Diameter / Height | 210 mm / 230 mm |
| Inner Chamber Dimensions (ø x D) | 210 x 330 mm |
| Chamber Capacity | 9 Litres |
| Maximum Instrument Length | 228 mm |
| Maximum Load Weight | 3 kg |
| Sterilisation Temperature | 134 °C |
| Operating Pressure | 2.2 Bar |
| Minimum Sterilisation Time | 3 minutes |
| Cycle Time (Normal) | 20 minutes |
| Voltage | 230 V |
| Wattage | 1500 W |
| Frequency | 50–60 Hz |
| Printer | Yes |
| Temperature & Pressure Gauges | N/A |
| Furniture | Basket |
| Model Code | LTR330-0128-A |
| Shipping Weight | 9.25 kg |
| Shipping Dimensions (WxDxH) | 400 x 400 x 620 mm |
| Single Phase Power Supply | 220–240 V, 50–60 Hz, 1500 W, 10 A |
Presentation
The Classic Podiaclave is available in a compact design with multiple cycle options for different load types, ensuring versatile and efficient sterilization.
Compliance
- ISO 13485 2016 – Quality Management System
- UKCA UK MDR 2002
- Pressure Equipment Directive PED 2014/68/EU
- BS EN 61010-1 Safety standard for electrical equipment
- BS EN 61010-2-040 Safety requirements for electrical equipment for measurement, control and laboratory use.
- BS EN 61326-1:2013 Electromagnetic compatibility
- EN ISO 14971:2016 - Application of Risk Management to Medical Devices
- BS EN 13060:2014+A1:2018 - Small Steam Sterilisers
- The Waste Electrical and Electronic Equipment Regulations 201
F.A.Q.
What instruments can be sterilized?
It is designed for podiatric instruments including handpieces, burs, and other accessories.
What is the sterilization temperature?
The unit operates at 134°C to ensure complete sterilization.
What cycle options are available?
Multiple cycles are available for unwrapped, wrapped, heavy duty, and handpiece loads, with varying sterilization and dry times.
How long does each cycle take?
Cycle times range from 4 minutes for unwrapped loads up to 20 minutes for heavy duty cycles, with dry times from 1 to 15 minutes.
What is the Warranty period?
12 months from the date of purchase. In this period, Prestige Medical shall repair or replace free of charge any parts which prove to be defective in workmanship and/or materials. The Warranty excludes the gasket, all internal furniture, and consumables.
Extended warranties are available on request.
